ZRGP C&I Battery

PowerGen Mobile

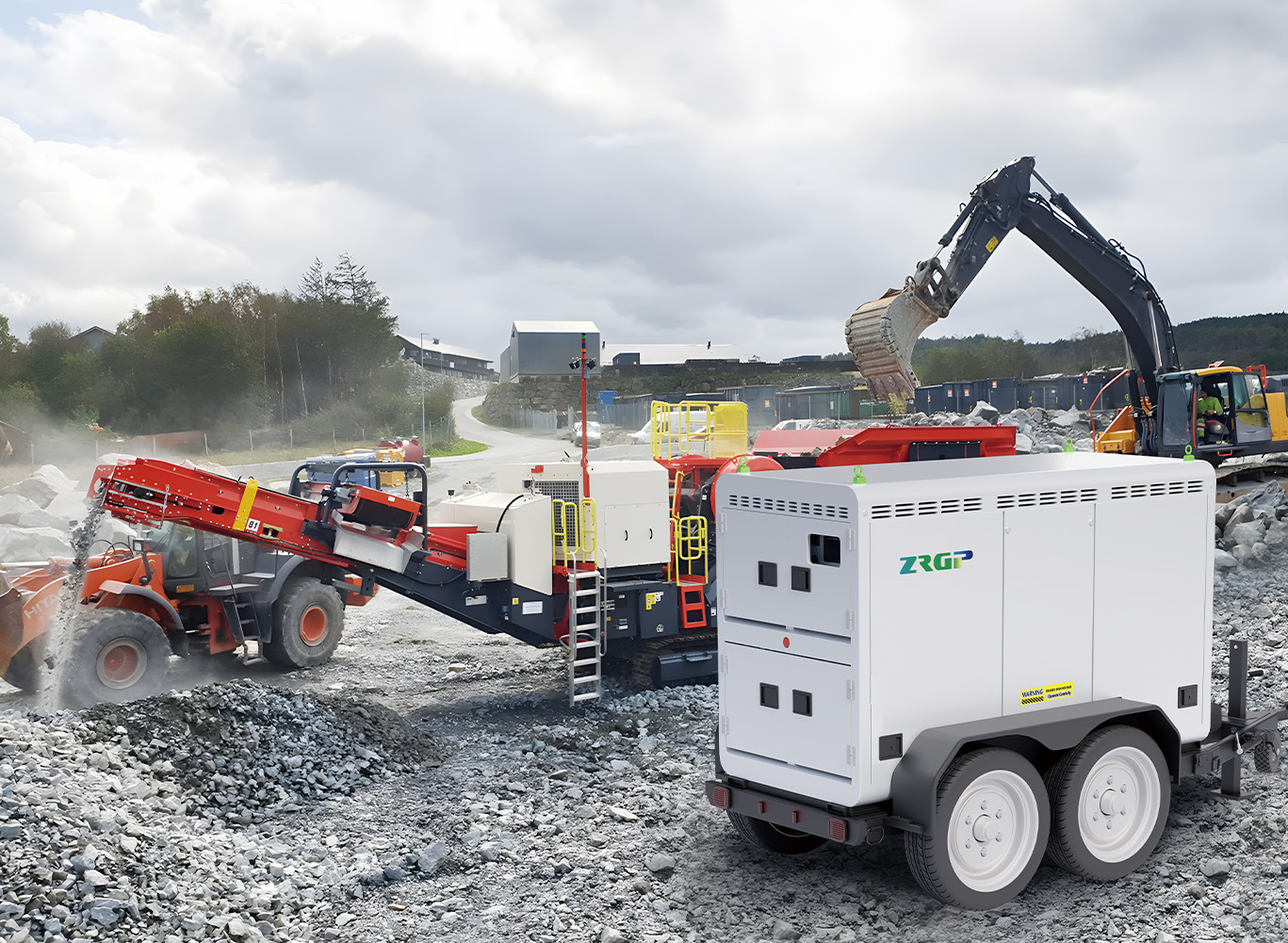

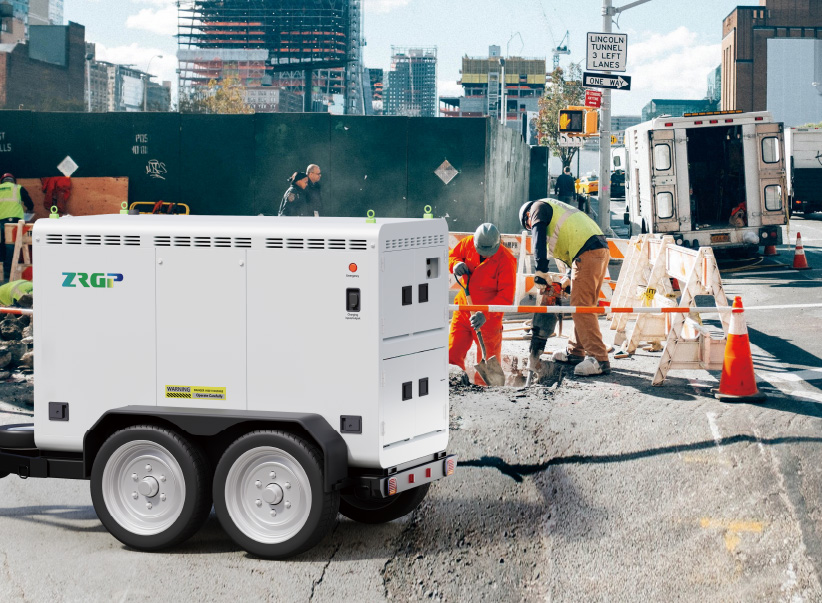

A versatile, energy-efficient power solution with multi-voltage outputs (120V-480V), flexible modes, and broad compatibility for events, agriculture, off-grid sites, and construction.

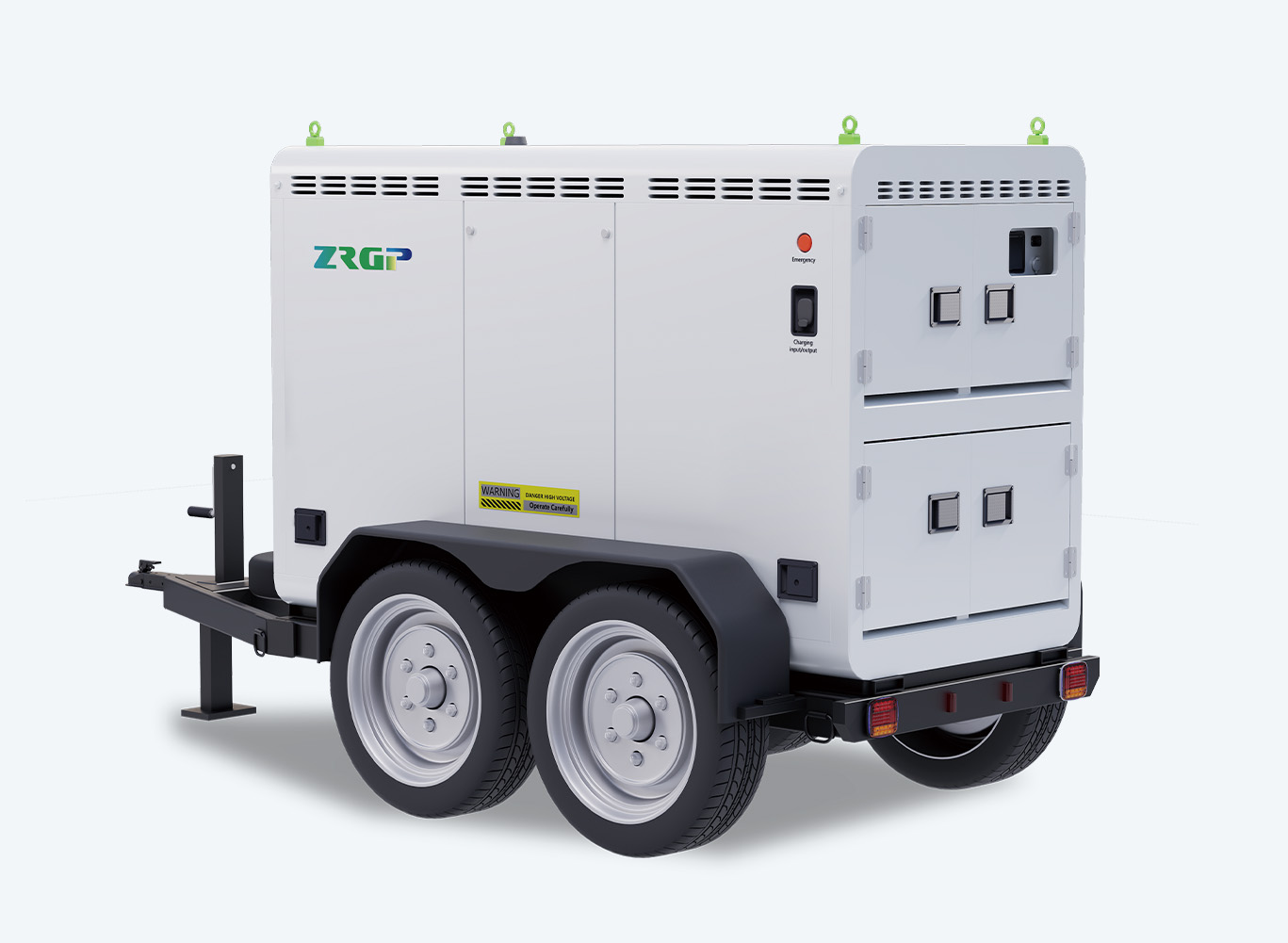

PowerGen Mobile: Movable Emergency Energy Storage Solution

PowerGen Mobile: Movable Emergency Energy Storage Solution
Our Energy Works For You
PowerGen Mobile: Mobile power without the hassle. Where previously the generator was roaring as if it was being paid per decibel, our box now regulates the flow quietly and smartly. Exactly where you need it. Flexible, movable and future-proof
  • Smart Efficiency

    Intelligently balances PCS power and generation to reduce fuel consumption for optimized energy use.

  • Multi-Voltage Compatibility

    Offers 480V/208V/240V/120V outputs, suitable for residential, commercial, and industrial power needs.

  • High-Power Output

    Delivers 324kW instant power to ensure stable supply for heavy-load applications and demanding scenarios.

  • Portable Durability

    Towable for rapid deployment, with IP54/NEMA 3R protection for reliable use in harsh environments.

Brochure Download > User Manual Download > Certification Check > Installation Guide >
Unlock Mobile Energy Excellence

Unlock Mobile Energy Excellence

Smart, scalable power solutions with multi-voltage outputs, 324kW high power, and portable durability for seamless energy management.

Get Yours Today
View Details > Go to Download Center >

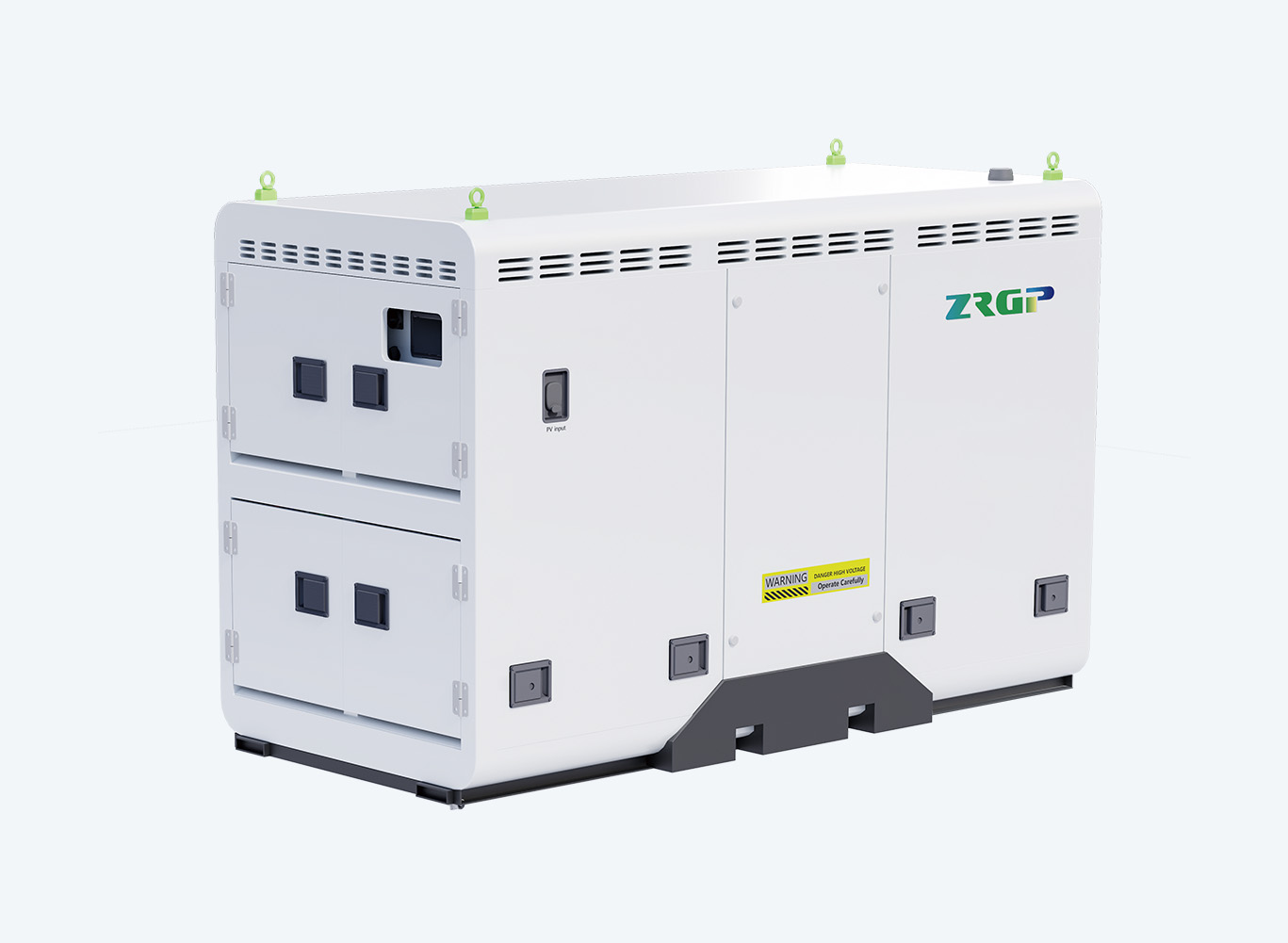

mobile (2)

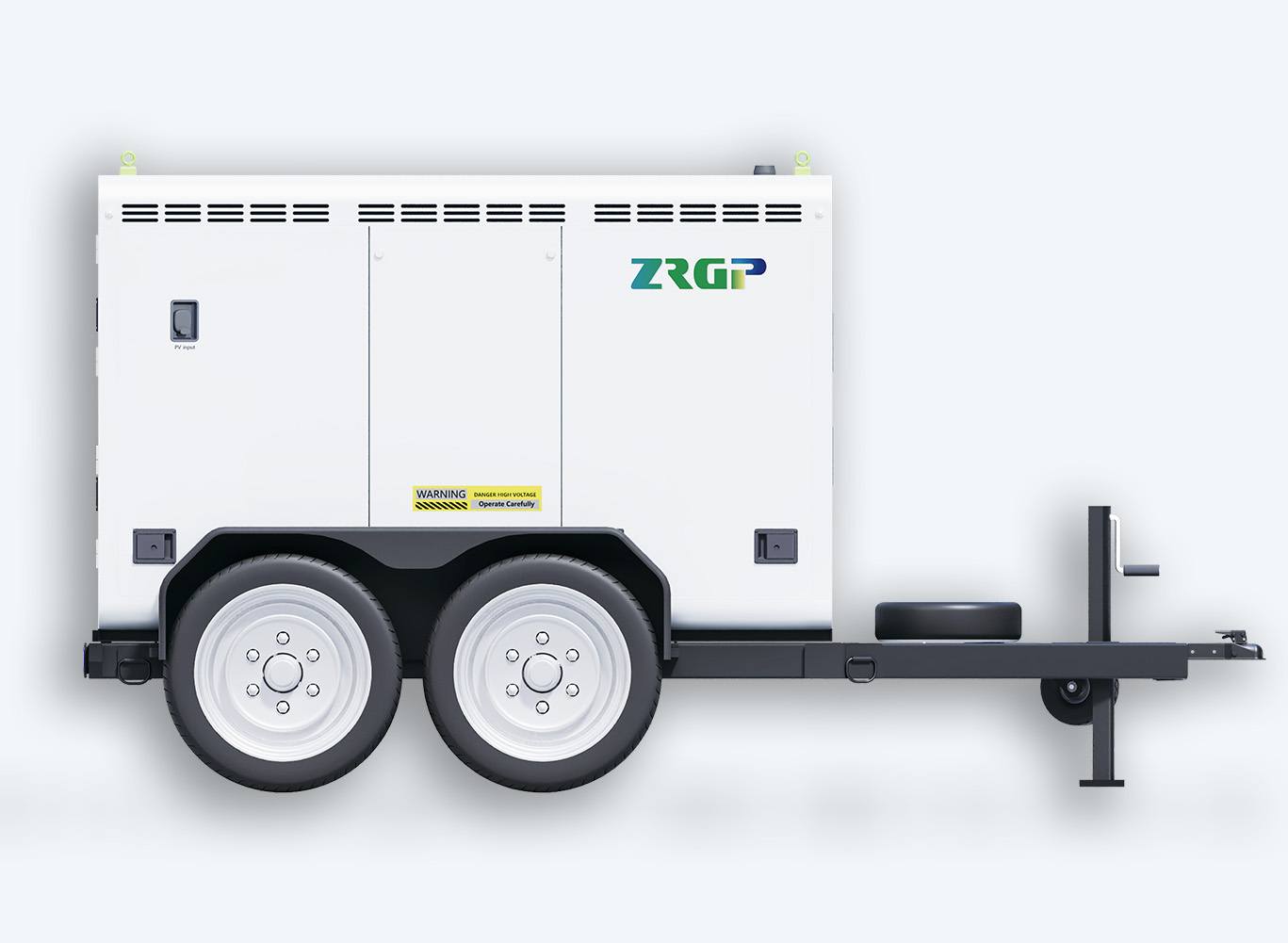

mobile (3)

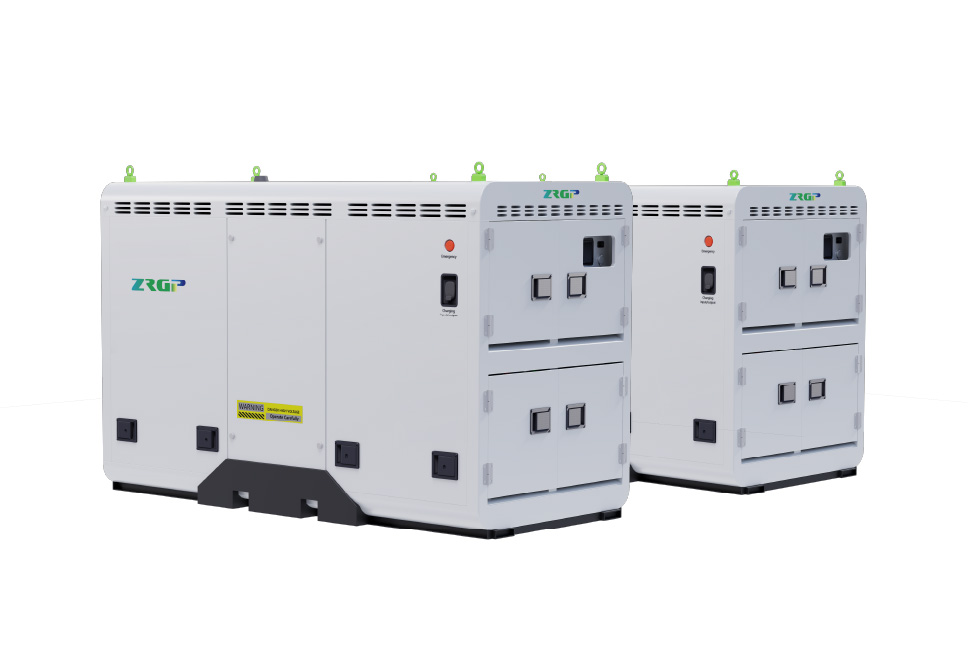

mobile (1)

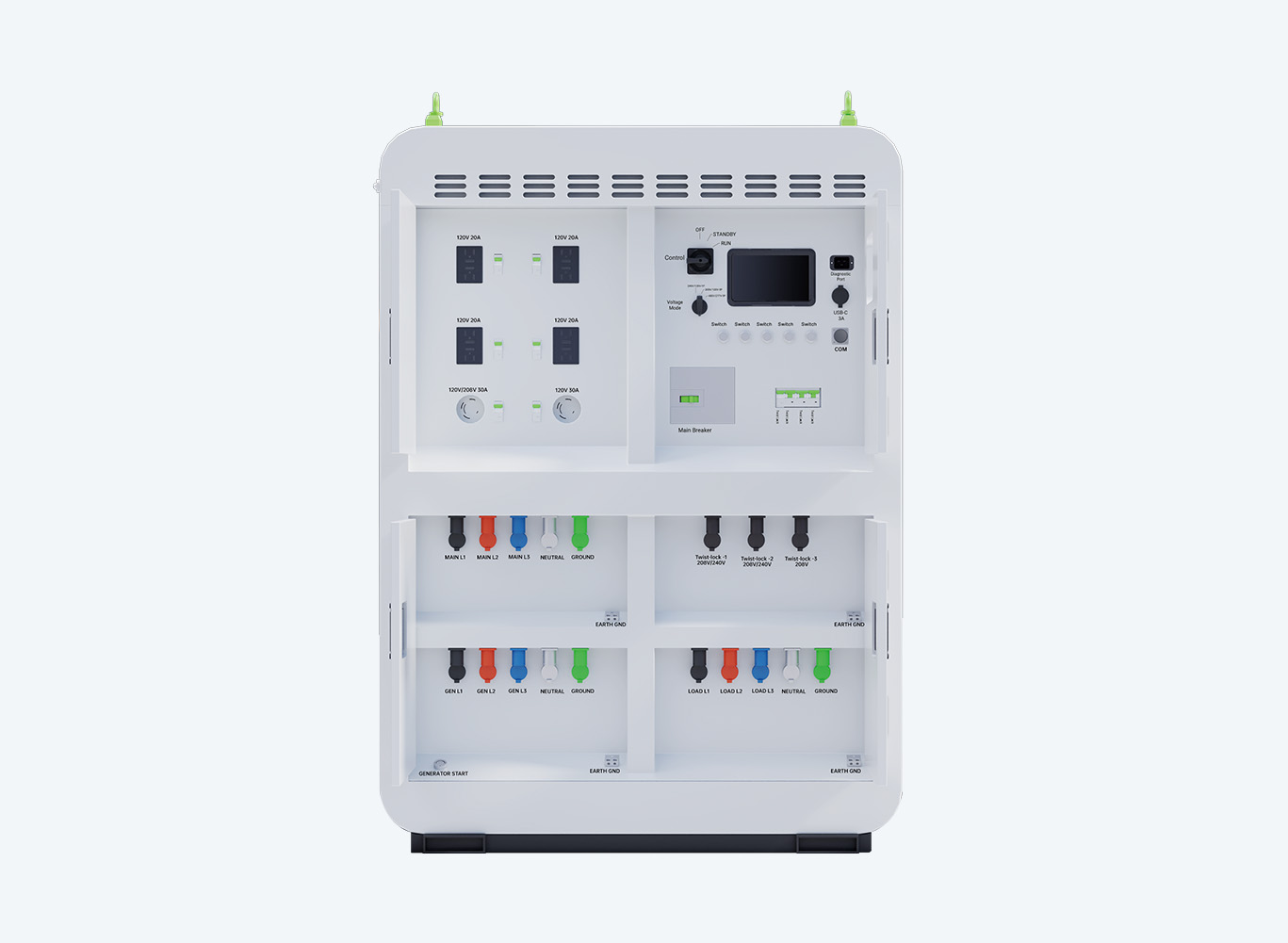

mobile (4)

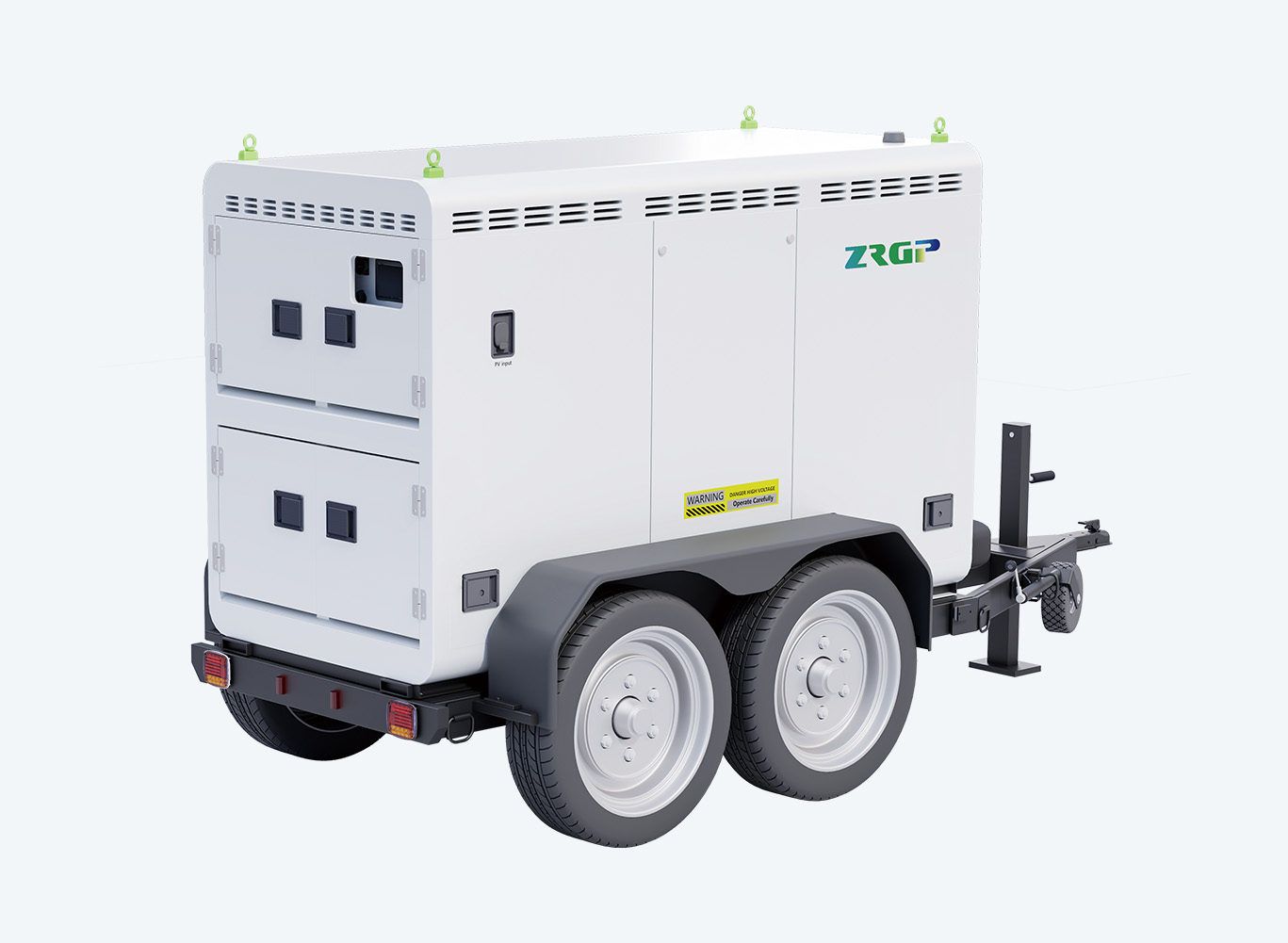

mobile (5)

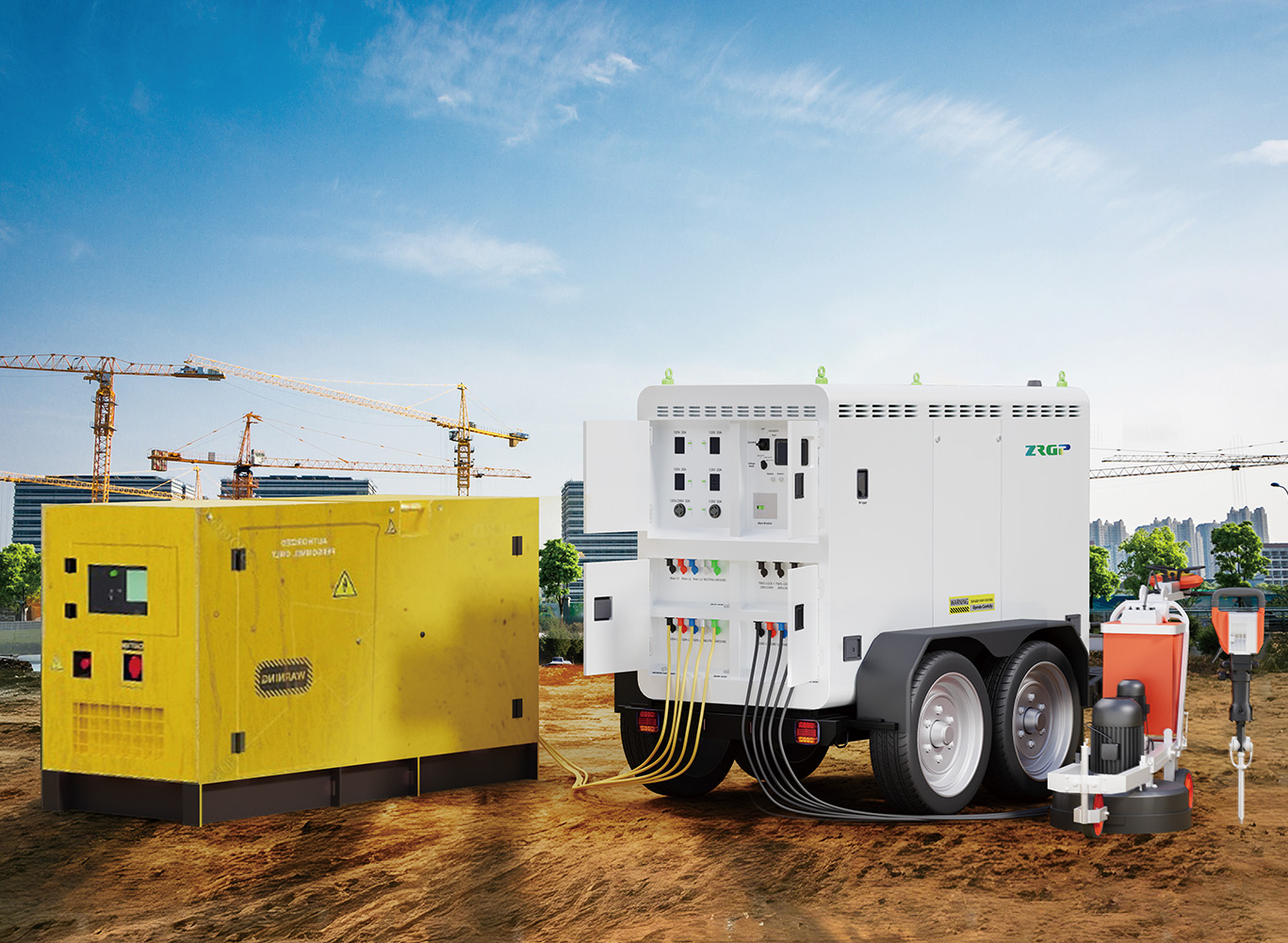

mobile (6)

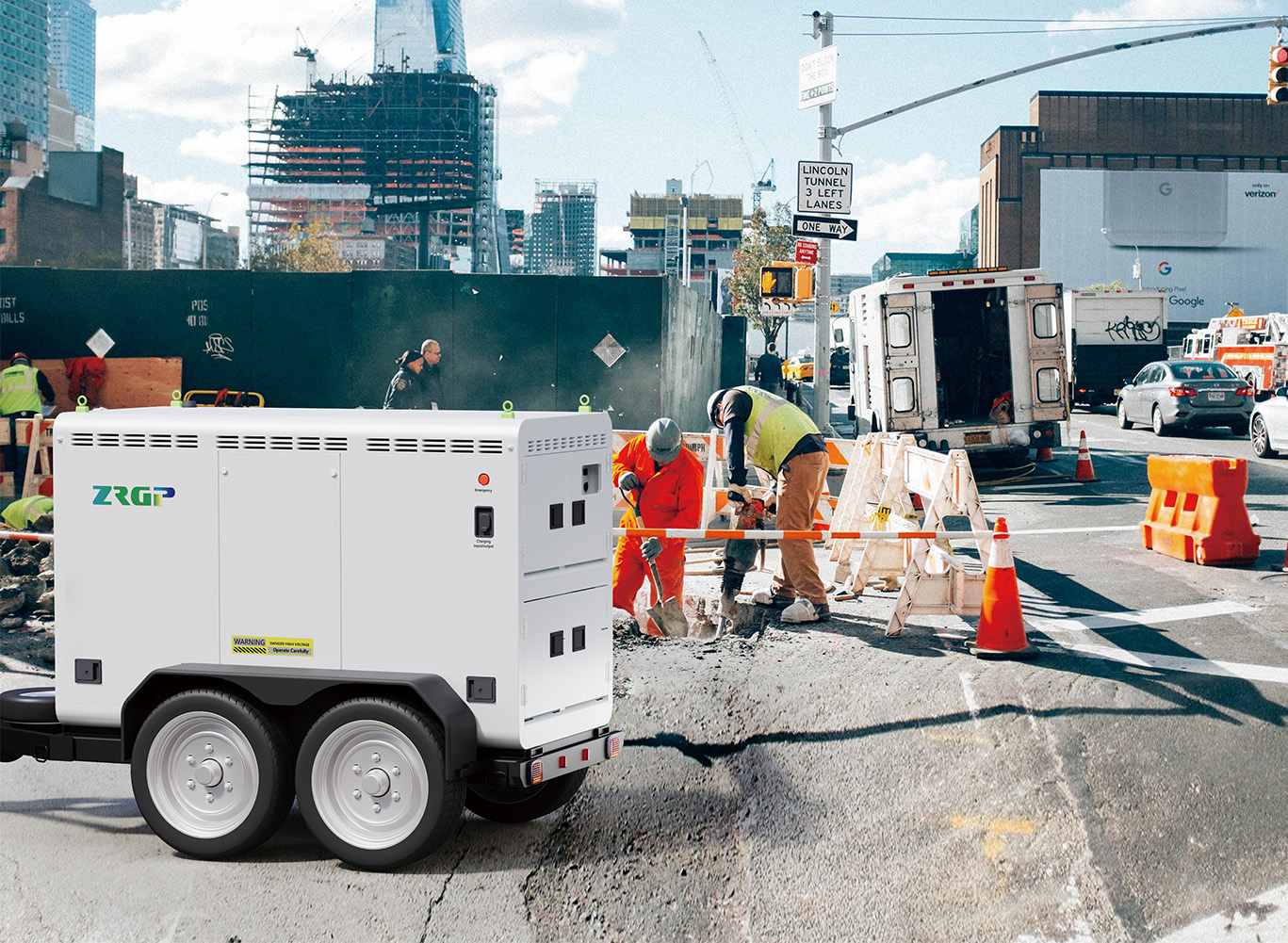

mobile (7) - 副本

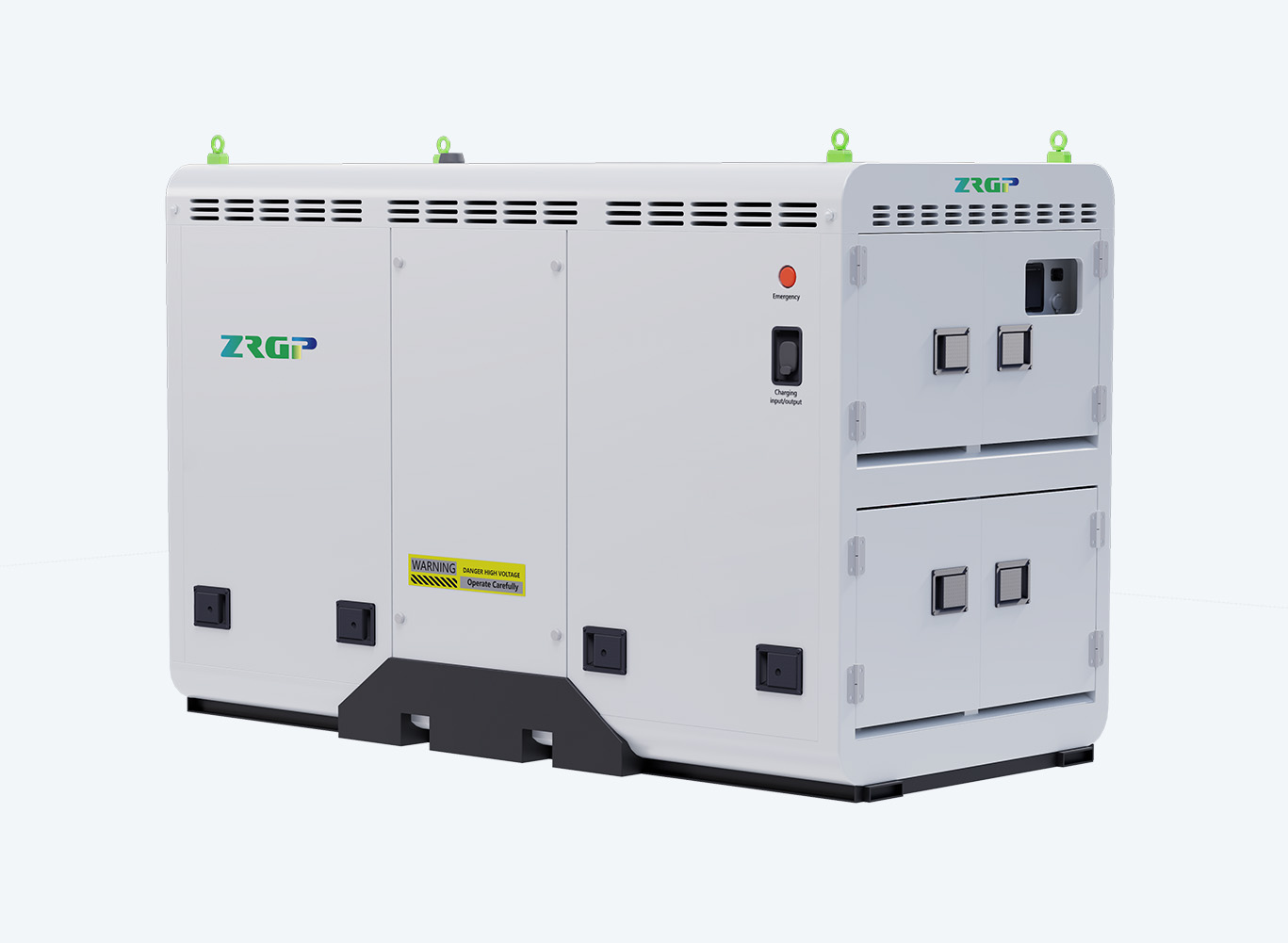

mobile (7)
mobile (8) - 副本
Battery Energy Storage
Cell Chemistry LiFePO4
Nominal Energy(kWh) 560
Voltage Range(Vdc) 750~908.8
Nominal Charging Current(A) 330
Nominal Discharging Current(A) 330
Max. Discharging Current(A) 400
DOD 90%
General Parameters
Product Model Z-XG560270H1-US03
Parallel Capable Yes ( Up to 6)
Ingress Rating IP54 / NEMA 3R
Working Temperature(°F/°C) -4~131 / -20~55
Storage Temperature(°F/°C) -40~149 / -40~65
Relative Humidity 5~ 95% (No condensing)
System Noise(dB) <75
Cooling Air cooling
Fire Suppression System Included
Altitude(m) 5,000 (>3,000 derating)
Certifications UL1973, UL9540, UL9540A
UL1741, UL9741, UL2202(UL2231-1, UL 2231-2)
UL991, UL1998
Dimensions- W*D*H (mm/in) 1752*4140*2000 / 69*163*79
Weight(kg/lb) ~5800 / ~12,786.8
AC Output
AC Output 480Vac On-Grid) For Load 480Vac Off-Grid)
Rated Power(kVA) 270 270
Rated Voltage(Vac) 480(±15%) 480(±15%)
Rated Frequency(Hz) 60(±5) 60(±5)
AC Connection 3P4W 3P4W
Power Factor 0.99/-1~1 0.99/-1~1

AC Output For Conector 208Vac Output For Conector 240Vac Output For Socket 120Vac Output
Rated Power(kVA) 35 24 12
Rated Voltage(Vac) 208 240 120
AC Connection 3P4W 2P3W 1P2W
