PowerBase MEGA-233 System

PowerBase MEGA 233 system is a high-density energy storage system designed for seamless integration and flexible expansion. With a compact all-in-one design, it ensures efficient installation and reliable performance for various applications.

PowerBase 233: A High-Capacity and Secure Energy Storage System

PowerBase 233: A High-Capacity and Secure Energy Storage System
Our Energy Works For You
PowerBase 233 features advanced monitoring, multi-level protection, and AI-driven management. Its smart operation system enhances efficiency, minimizes downtime, and ensures long-term reliability.
  • High Integration and Compact Design

    Integrates battery storage, power conversion, and intelligent control in one unit, reducing space needs and simplifying installation

  • Innovative Operation and Maintenance

    Incorporates a full EMS for remote upgrades, big-data diagnostics, and SOC calibration to enhance efficiency and minimize downtime

  • Advanced Safety and Reliability

    Equipped with multi-level fire prevention, liquid cooling, and aerosol extinguishing, providing superior thermal management and enhanced system safety

  • Durable and Versatile Performance

    IP54 protection, efficient cooling, and seamless grid integration ensure reliable performance in any environment, supporting both on-grid and off-grid use

Brochure Download > User Manual Download > Certification Check > Installation Guide >
Unlock Your Energy Storage Potential

Unlock Your Energy Storage Potential

Smart, scalable, and reliable solutions to power, protect, and optimize your energy systems

Make a Purchase Now
ViewDetails > Go to Download Center >
233 BC (1)
233 BC (2)
233 BC (5)
233 BC (4)
233 BC (3)
233 BC (6)
233 BC (7)
PowerBase MEGA-233A
Model PBM233125A0-EU PBM233125A0-US
Single Cell Type LFP 3.2V/280AH
Capacity (kWh) 233
Nominal Voltage (V) 832
Operation Voltage Range (Vdc) 702~949
Thermal Management Mode Liquid-cooling
Rated AC output power(kW) 125
Max. AC output power(kVA) 150 137.5
AC Output voltage(Vac) range -15%~10%(settable)
PCS Cooling Forced Air Cooling
Certifications IEC62619/UN38.3/IEC/ EN 62477-1,
IEC EN/61000-6-2,IEC/EN 61000-6-4		 UL1741, CSA C22.2 No 107.1,
IEEE1547/UL1973/UL9540/UL9540A
IP Rating IP54
W*D*H 1100*1450*2350mm / 43*57*92.5in
Weight 2950kg /6503lb

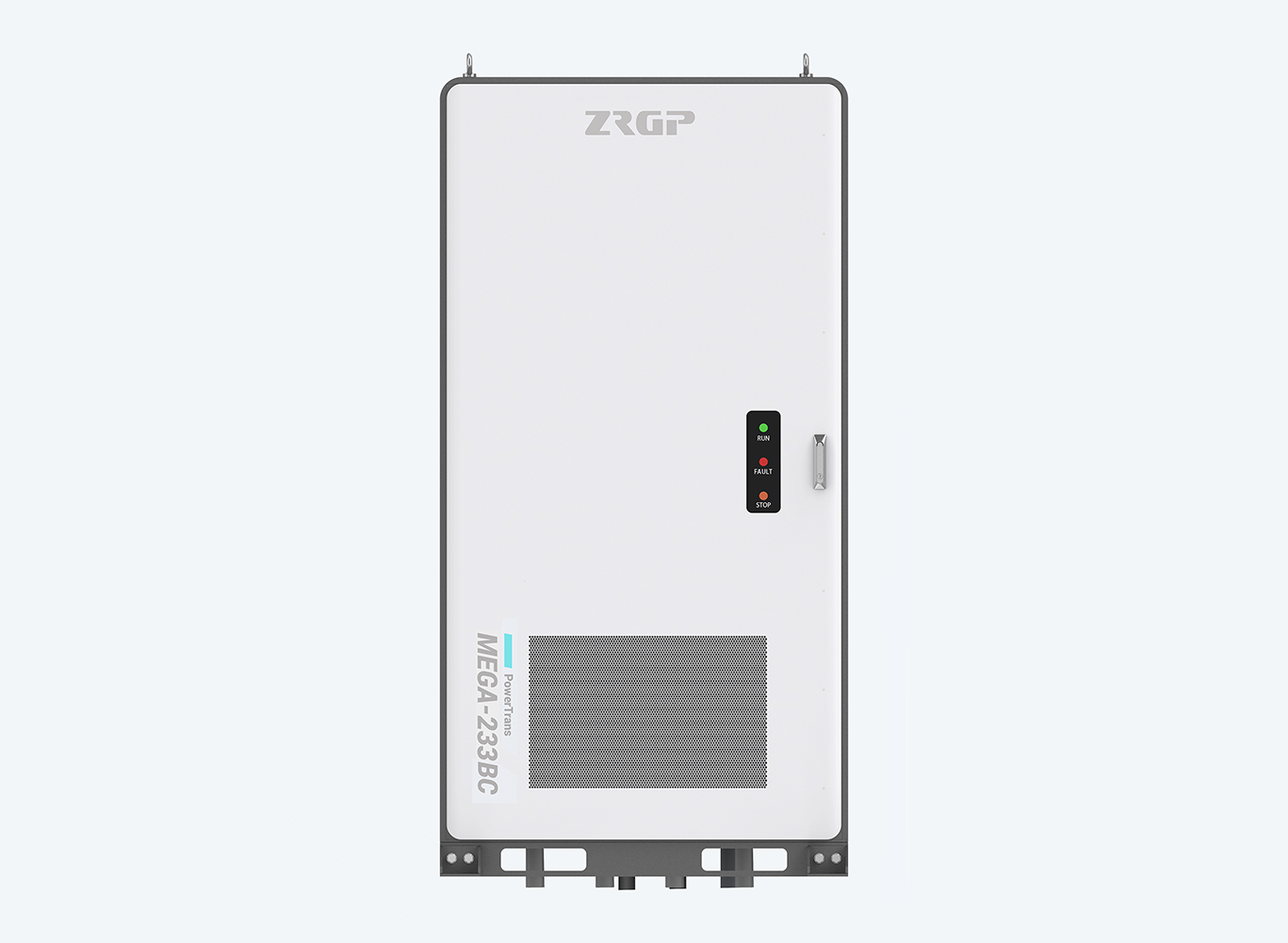

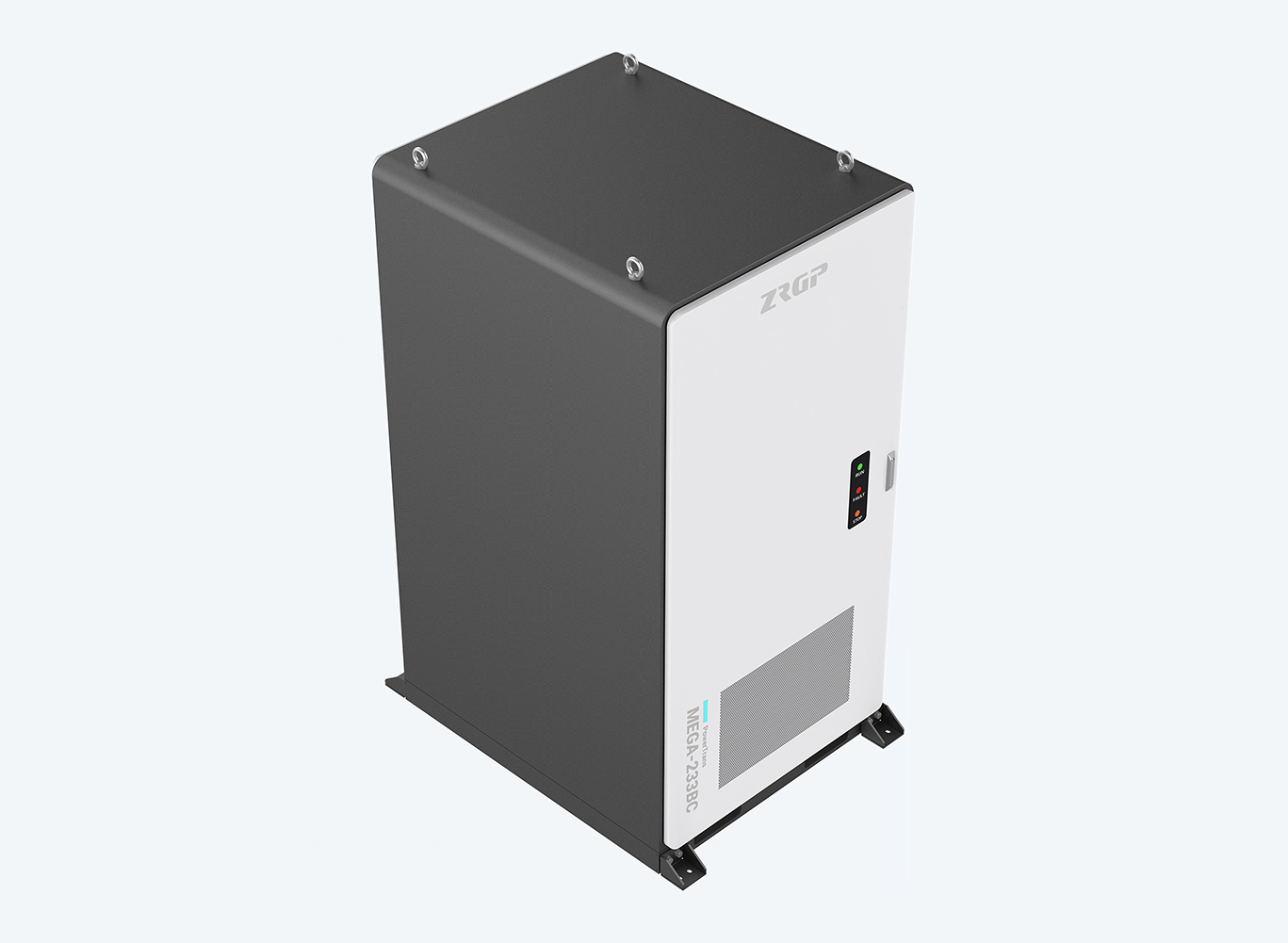

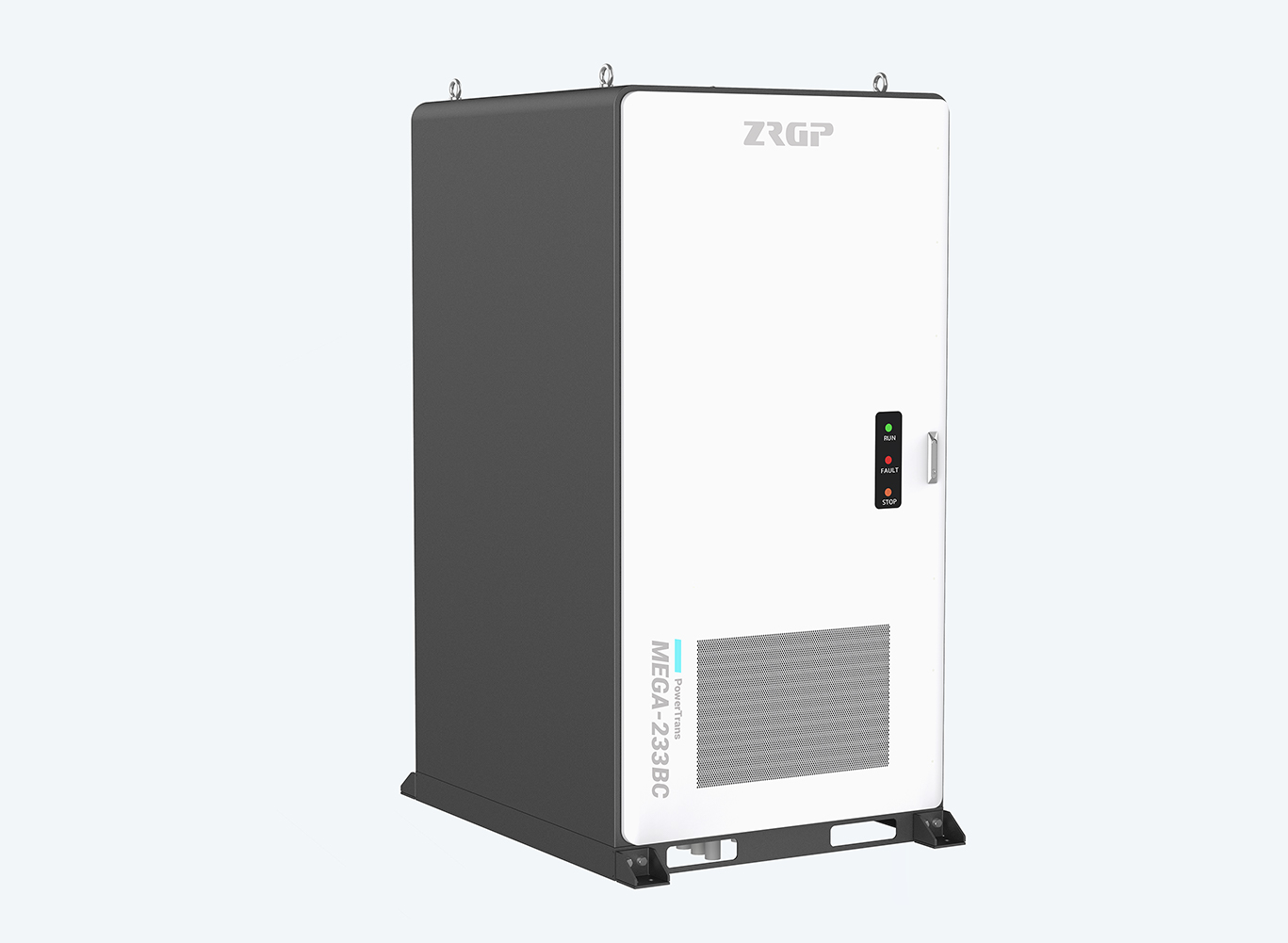

PowerTrans MEGA-233BC
Model PTM2000PDCD0-EU PTM3200PDCD0(common) PTM2000PDCD0-US
Input Voltage(Vac) 400 690 480
Access Channel 16
Output Channel 1
Max. Rated Power(kW) 2000 3200 2000
Rated Current(A) 2887 2678 2406
UPS Optional
Communication Interface CAN / LAN / RS485
Warranty 3 years free, paid from the 4th to the 15th yea
W*D*H 1200*1450*2350mm / 47.2*57*92.5in
Weight 1200kg / 2645.5lb
IP Rating IP54
Operating Temperature –35°C ~ 55°C
Storage Temperature –40°C ~ 70°C
