ZRGP C&I Liquid-cooling Distributed Container System

PowerBase STATION

PowerBase Station offers flexible energy capacities and seamless grid integration. Its intelligent management system enables remote monitoring and real-time optimization for efficient energy storage.

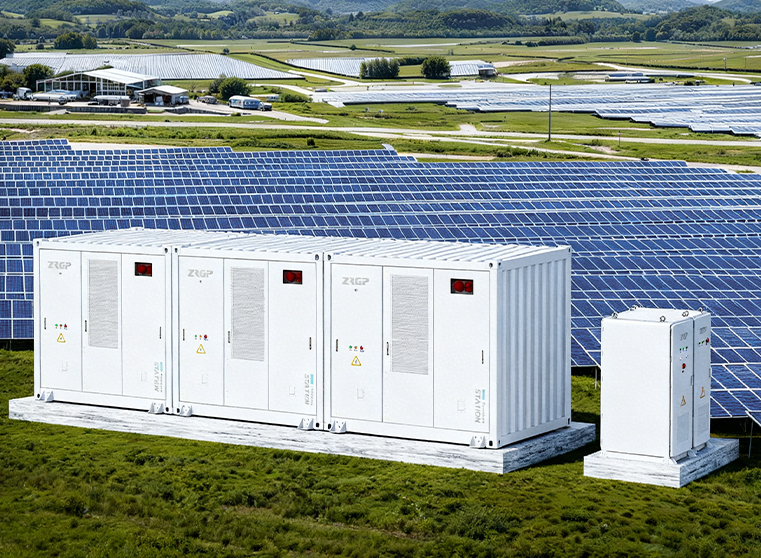

PowerBase STATION: Cutting-Edge Energy Management

PowerBase STATION: Cutting-Edge Energy Management
Our Energy Works For You
PowerBase Station is a high-capacity energy storage system for industrial and commercial use. Its liquid-cooling technology ensures efficient thermal management, extended battery life, and reliable performance.
  • Maximizing Density

    The 5MWh container features a compact design, efficient liquid cooling, and space-saving back-to-back installation.

  • Smart Operations and Maintenance

    Equipped with EMS, one-click upgrades complete in 15 minutes Automatic liquid replenishment eliminates manual work, while intelligent SOC calibration ensures uninterrupted operation

  • Secure and Dependable Design

    Featuring multi-level fire suppression and top venting for active cooling, it minimizes explosion risks AI-driven cell monitoring provides early failure warnings, ensuring enhanced safety

  • Efficient Design for Stability and Longevity

    The fully modular design reduces failure losses and maximizes uptime Efficient liquid cooling enhances battery life, while IP55 C5 protection ensures adaptability Cluster-by-cluster management reduces the barrel effect

Brochure Download > User Manual Download > Certification Check > Installation Guide >

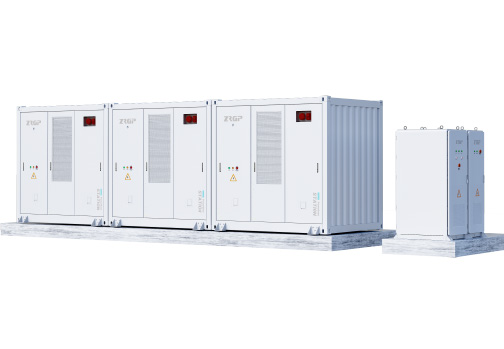

Unlock Your Energy Storage Potential

Unlock Your Energy Storage Potential

Smart, scalable, and reliable solutions to power, protect, and optimize yourenergy systems

Make a Purchase Now
ViewDetails > Go to Download Center >
2
1
3
3
3
美 (1)
美 (3)
欧1-2 (3)
欧1-2 (1)
欧1-2 (4)
欧1-2 (6)
欧1-2 (5)
欧3
欧32
欧31
欧33
Battery Parameters
Capacity (kWh) 1672 3344 5016
Number of Battery System 1 2 3
Number of Strings 4 8 12
Module Configuration 1P104S
String Configuration 1P416S
Operation Voltage Range(Vdc) 1218.88~1476.8
Nominal Voltage(V) 1331.2
Thermal Management Mode Liquid-cooling
Thermal Runaway Management Aerosol Extinguishing or PFH
Depth of Discharge 90% DoD
AC Output
Rated AC Output Power(kVA) 840 1670 2500
Max. AC Output Power(kVA) 860 1725 2580
Output Voltage Range(Vac) 11kV~33kV
Rated Grid Frequency(Hz) 50 / 60
AC PF 0.99 / -1~1
THDi ≤3%
General Parameters
Battery System Dimensions(W*D*H) 2991*2438*2591mm
117.8*96*102in		 2991*4952*2591mm
117.8*195*114in		 2991*7466*2591mm
117.8*294*102in
Battery System Total Weight ~15000kg / 33069lb ~30000kg / 66139lb ~45000kg / 99208lb
IP Rating IP54
Operation Altitude 3000m / 10000feet (>3000m / 10000feet derating)
Operation Temperature -30°C to 55°C (De-rating over 45°C)
Operation Humidity(Rh) ≤95%, No condensation
Communication Interface CAN / RS485 / Ethernet
Certifications IEC62619, IEC62477, EN61000-6-2/4, UL9540A, UL9540, UN3536
