ZRGP Residential All in One ESS

PowerBase MAX-A

PowerBase Max-A is an all-in-one energy storage system designed for both off-grid and grid-tied applications. It integrates a hybrid inverter, lithium energy storage, and control system into a compact, efficient unit.

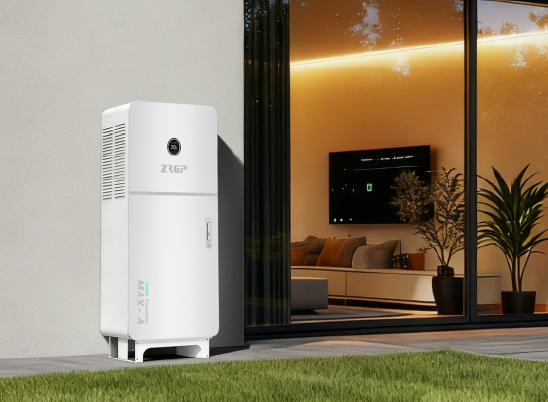

PowerBase MAX-A: A Safe snd User-friendly Energy Storage Solution

PowerBase MAX-A: A Safe snd User-friendly Energy Storage Solution
Our Energy Works For You
PowerBase Max-A is featuring scalable capacity and advanced safety features, it delivers reliable and safe operation in various environments.
  • High Efficiency for Maximum Energy Conversion

    Achieves industry-leading energy conversion efficiency, ensuring optimal performance and minimal power loss, ensuring optimal energy conversion and minimal power loss

  • Enhanced Safety and Reliable Performance

    Featuring IP54 protection, leakage protection, built-in copper busbar, And power distribution panel for more stable and safe output

  • Intelligent Monitoring and Control

    Smart home orientation, monitor anytime, anywhere with cloud platform and mobile app, ensuring full control and convenience

  • All-in-One System for Simplified Energy Management

    Integrates a hybrid inverter, lithium storage, and control system, simplifying both off-grid and grid-tied installations

Brochure Download > User Manual Download > Certification Check > Installation Guide >
Unlock Your Energy Storage Potential

Unlock Your Energy Storage Potential

Smart, scalable, and reliable solutions to power, protect, and optimize your energy systems

Make a Purchase Now
20250208100811677
20250208100633806
Australia Warehouse 20kWh 20kW*2 DEYE
A Remote Farm in Australia Affected by Power Outages and Voltage Instability

Installation Date: 01 Sep,2023

Read Full Article >> >
20250217160005680
20250217160005683
Australia Warehouse 16kWh 8kW*ZRGP PowerTrans
A 16kWh low-voltage wall-mounted system solution located in Australia.

Installation Date: 12 Feb,2025

20250217160657455
Netherlands Household 19.2kWh 20kW DEYE
A high-voltage residential solution located in the Netherlands.

Installation Date: 12 Jun,2024

ViewDetails > Go to Download Center >
MAX-A (2)
MAX-A (3)
MAX-A (1)
MAX-A (5)
MAX-A (4)
Inverter Parameters
Rated Output Power (W) 6000
Maximum AC Output Current (A) 28.7
Power Factor 1
Nominal Output Voltage (Vac) 230
Frequency (Hz) 50 / 60
THDi <3%
Type of Grid Connection L+N+PE
Auto Switch Time (mS) 10
Surge Capability 110%@60S / 120%@30S / 150%@10S
Battery Parameters
Nominal Energy (kWh) 10.24
Max. Charging Voltage (V) 58.4
Discharge Cut-off Voltage (V) 43.2
Cycle Life 8000 times
Warranty 10 yesrs
General Parameters
W*D*H (mm) 600*320*1350
Weight (Approximate) (kg) 180
Level of Protection IP54
Cooling FAN-Free Convection
Operating Temperature -20°C ~ 50°C
Operating Altitude (m) 2000
Relative Humidity Range (RH) 10% ~ 90%
Communication RS485 / Wi-Fi / CAN
Certification - Battery CE/ UKCA/ IEC 62619/ UN 38.3/ MSDS
Certification - Inverter CE/ TUV/ SAA/ IEC62166; 2014 / IEC61683:1999
